CLOUD POINT ANALYZER 조회 313

옵션표

  • Model Name
    Cloud Point
  • Specification
    - Measuring Range: -30°C to +30°C
    - Repeatability: Equal to or better than repeatability criteria of the relevant test.
    - Cycle Time: Typically 4-8 minutes.
    - Hazardous Area Certification: Exd(ATEX,IECEx,TIIS,EAC Standards),
    Zone 1 or Zone 2 (IIA,IIB,IIB+H2), Class1, Div 1, Gr B,C,D.
  • Description

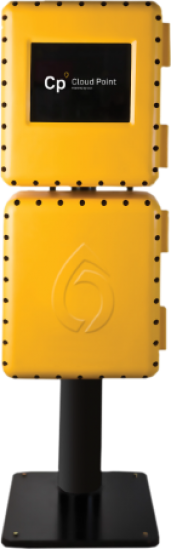

    The icon scientific Cloud Point Analyser is used to provide an indicator of the lowest temperature at which typically a diesel fuel may be used.
    The analyser uses advanced thermoelectric cooling and optical detection to provide exceptional results, in most cases without the need for chilled water.
    The optical detector arrangement also provides excellent immunity to dissolved water in the sample, giving you outstanding repeatability.

    The obtained results are compatible with those of any standard cloud point test methods such as ASTM D2500 and ASTM D5771/2/3.

본문

적용: 정유공장 - 흐림점(운점) 분석기


액체에서 운점 은 투명한 용액이 액체-액체 상 분리를 거쳐 에멀젼을 형성 하거나 액체-고체 상 전이를 거쳐 안정된 졸 또는 침전물을 침전시키는 현탁액을 형성하는 온도 이다.

구름 점은 응축 이라고 하는 기체-액체 상 전이 가 수증기 (습기)에서 발생하여 액체 물 (이슬 또는 구름)을 형성 하는 '이슬점'과 유사 하다

온도가 섭씨 0도 이하이면 수증기가 증착,응고 또는 동결 이라고하는 기체-고체 상 전이를 겪기 때문에 이슬점을 서리 점이라고 한다.

석유 산업에서 운점은 디젤의 왁스 또는 바이오 디젤의 바이오 왁스가 흐린 모양을 형성하는 온도 이하를 의미한다

고형화 된 왁스가 있으면 오일이 두꺼워지고 엔진의 연료 필터와 인젝터가 막힌다.

왁스는 또한 차가운 표면 (예 : 파이프 라인 또는 열교환 기 오염 생성)에 축적 되어 물과 함께 유제 또는  을 형성한다.

따라서 구름 점은 저온 작동 온도에서 오일이 필터 또는 작은 오리피스를 막는 경향을 나타낸다.
